Supermarine Spitfire, Seafire, Seafang Factory Drawings


Norton Nut's Supermarine Spitfire, Seafire, Seafang Factory Drawings

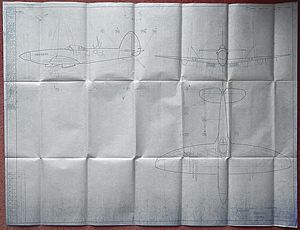

These are drawing prints of the type that would have been issued to the factory floor. The company title is given as Vickers Armstrong Ltd. Supermarine Works. I believe these are contemporary with the aircraft, not modern "reproductions". 4 prints measure 39"x30" (990mmx762mm). The drawing title is "Component Assembly" on all 4. These are not easy to photograph - all 4 are similar but the other 3 are more faded than this one.
Drawing no. 38800 sheet 6 - Seafire 46
Drawing no. 38800 sheet 7 - Seafire 47
Drawing no. 37100 Type not stated - possibly Spiteful?
Drawing no. 39600 Seafang 32.

Also one other print 14 1/2"x10", No. 39400 just shows the location and dimensions of the fuselage rounded on Spitfire XVIII.
This is a rare opportunity for you to own original Supermarine factory material.
